TROLLBRIDGE2400 - CHARGE YOUR 24 VOLT BATTERY WITH 12 VOLTS

WHICH COMBINER DO I NEED?     The Trollbridge2400® Combiner allows you to charge your 24 volt bow thruster, winch or trolling motor battery from the 12 volt alternator on your main engine or trailer hook-up with up to 200 amps. It works by automatically putting two 12 volt batteries in series when you need to run the 24 volt motor and in parallel for charging. It is bi-directional so when running 12 volt loads, both batteries are available in parallel for 12 volt loads.    The Trollbridge2400 is suitable for installations with alternators up to 200 amps and 24 volt equipment up to 16 horse power or 500 amps.    Required ANL250 fuse (250A) included. If the stalled current of the motor is greater than 250 amps and your cable sizes are adequate, substitute a 500 amps maximum ANL fuse.    Customer supplies high current battery cables of sufficient gauge for the 24 volt load and the charging line from the starting battery.

Click image for large view.

Features:-

• For use on 24 volt anchor winch, bow thruster, hydraulics etc., up to 16 horsepower
• Rated for 24 volt motors up to 500 amps, 16 horsepower, 12KW
  . . . For smaller motors use the Trollbridge24

• Rated for 12 volt alternators or charging sources up to 200 amps
• Efficiency over 99% at full charge or load
• No idle current to discharge the starting battery while waiting for a load
• Fully automatic, no switches or connectors to change
• Batteries are connected in parallel when not in use
• Batteries follow the same multi-step charging algorithm used by the starting battery.
• Load monitor protects the alternator from overload on low or large batteries
• Built in Combiner protects starting battery from discharge, charges automatically
• The bottom battery can be used as a house or starting battery even when in series
• The batteries do not have to be matched or balanced
• A single output 12 volt charger will charge all batteries
• Can work with minimal 2 battery systems using the starting battery
• Can be conveniently located with the batteries
• Green LED indicates 24 volt output active
• Amber LED indicates charging in progress
• Red LED indicates fuse has ruptured
• Nearly UNLIMITED warranty
• Charging is done at 12 volts so your motor never sees excessive charging voltages
• Over 99% efficient - faster charge - no wasted power - no heating - no cooling fan
• Waterproof
• Ignition rated for explosive atmospheres
• No voltage drop so batteries reach full charge
• No voltage drop so motor gets full power
• No wasted power, no heat sink or cooling required
• No modification to alternator or 12 volt engine wiring

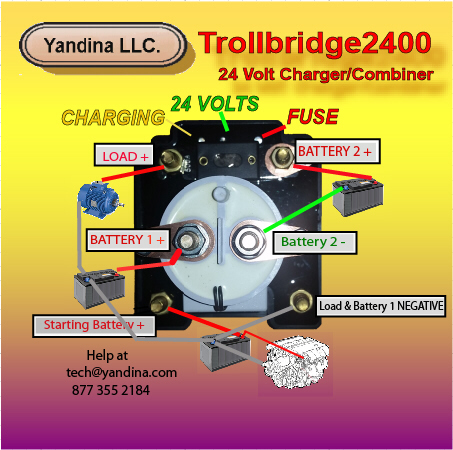

• Simple 6 wire installation 4 battery cables, charging line and output, customer supplied
• Draws no current when off - no on/off switch needed
• Withstands ambient temperature to over 175 F (80 C) for engine compartment mounting
• Compact, Only 4" long including mounting tabs, 4" wide, 5" high
• Weight 3 pounds

Click to download and view the owner's instruction manual using the Acrobat viewer. (Two pages with wiring diagrams).

See the Trollbridge24 FAQ for answers to common questions and to send us a technical question.
